Product Details

Medium duty racking can bear 400-1500kg, wide range of application, not only for warehouse storage, but also can be used in stores. It is convenient for people to access the goods as height is appropriate. It is an ideal racking system for the small and medium-sized warehouse.

Medium duty racking is an affordable shelving solution that can be customized for the storage of a wide range of items of varying weights. Longspan shelving options range from standard shelves to industrial strength systems. Welfor offer three types of longspan shelving including rivet shelving, longspan shelving and industrial shelving.

Medium duty racking is the ideal solution if you are storing small objects such as spare parts, cartons, textile rolls. Where the goods can’t be handled by a forklift and only handled by hands. It can be designed for small, medium and heavy duty loads. The system contains different types of shelves tailored to the type of goods.

Medium duty racking can be designed to maximize the benefits from the space and increase the number of stored products inside warehouse, thanks to the fixed stairs and gates that can be added around the racks the system is fully accessible at anytime and you can reach your goods easily without any prearrangement.

It is ideal for textile industry, automotive spare parts, and retail stocks.

Features

●Assembling structure, optional combination, easy installation and disassembly.

●Load capacity: <=1500kg each layer.

●Layer height: Each 60mm pitch is adjustable.

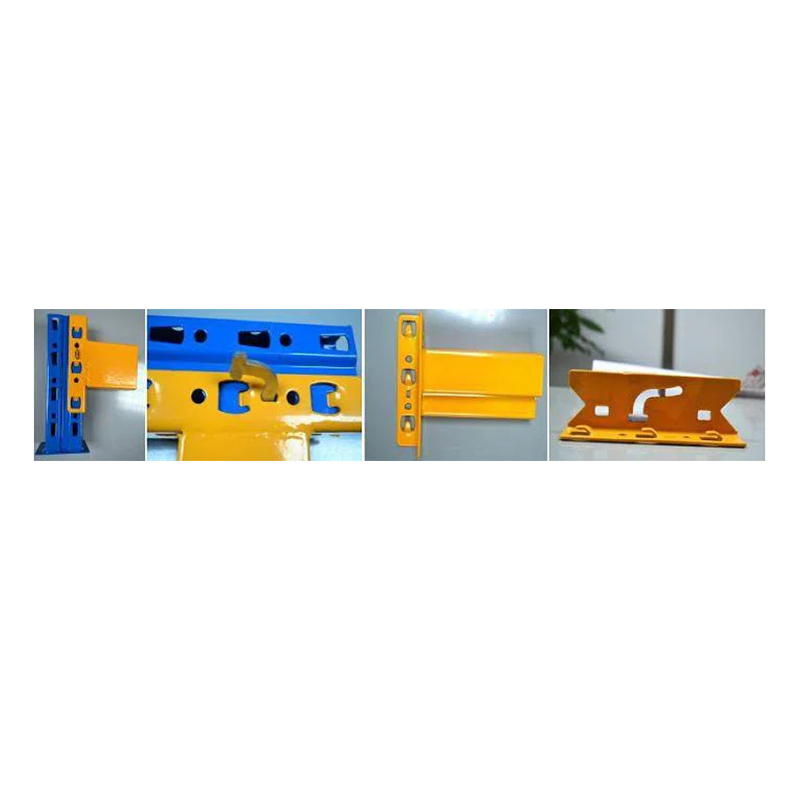

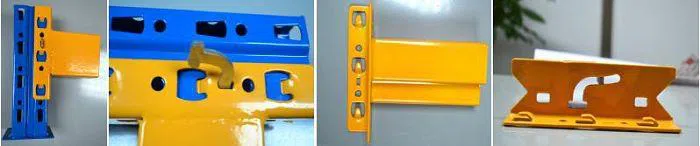

●Steel buckle connection between column and beam, and set security key lock to prevent the loss.

●Row spacer can be used to strengthen the connection between the column groups.

●Bottom of column can be matched with the ground nail to improve safety and reliability.

Specifications

●Takes up to 400kg per shelf UDL

●Made with a frame and beam configuration

●Frames are 2134mm high x 600mm deep

●Beams are 1200mm wide made from roll formed steel into a ‘step beam’

●Mesh decks are used as shelves, but you can use board if need be

●Shelving material drops into beam allowing for level shelf surface

●You can use multiple shelves per bay

●Sold by the number of frames and beams

Case
