Products
Warehouse Storage Pallet Rack
Five Advantages Of Products
- Space Utilization
- Better Visual Merchandising
- Modular & Easy to install
- Visual Merchandising:Best ergonomic visual to induce purchase
- Modular :Can be added or removed very easily
Product Details
Product Details
Warehouse storage pallet rack is a highly convenient and economical form of storage for all your different types of goods. Whether they are medium duty or heavy duty, whether they are palletized or non-palletized, all kinds of loads can be stored safely on heavy duty shelves. The shelves come in a variety of configurations and materials like wire mesh, perforated steel panels, and wooden planks to suit your load requirements properly.
Warehouse storage pallet rack makes remarkable use of the unused space at heights in warehouses. By saving costly and precious floor space it becomes a cost-effective storage solution for all your storage needs. The material can be easily stored or picked manually at lower level shelves while the stock at higher levels can be accessed with the assistance of MHEs. The structure of warehouse storage pallet rack is made of upright columns and beams that hold the load bearing shelves in place. The system is highly adjustable and yet sturdy enough for heavy duty loads. It also comes with many accessories that help you increase the efficiency of your storage and adapt the shelves to your specific load needs. The shelves are adjustable with a pitch of 76.2 mm and they are specially designed to accommodate all types of goods.

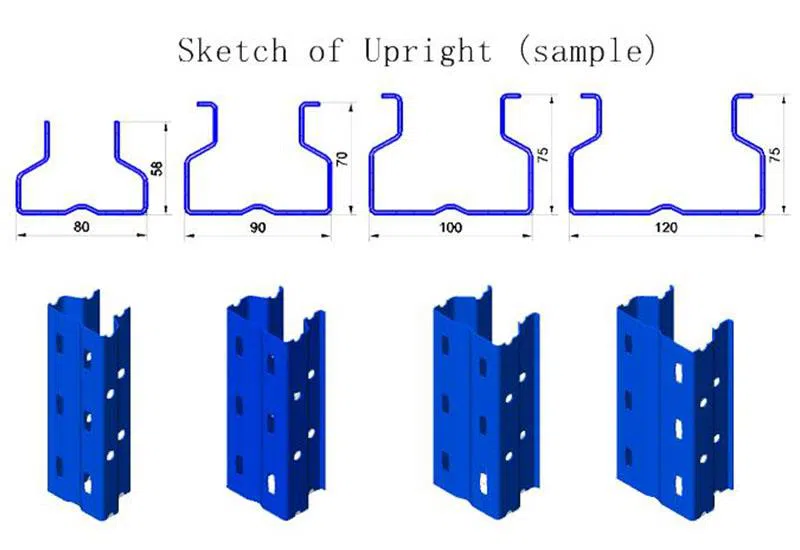

Upright
1. High load capacity up to 21000kg.
2. Frames include all the elements needed for assembly: bracing, feet and nuts & bolts
3. Blue epoxy coated (RAL 5017).
4. Standard heights : From 2 -11.5m
5. Adjusted by 75mm pitch.
Beam
1. High load capacity up to 4200kg
2. Manufactured with the highest quality steel.
3. Orange epoxy coated (RAL 2004)
4. Lengths available: 1850/2250/2700/3300/3600/3900mm
5. Boltless connection with 3 or 4 connector hooks
6. A security pins per beam to prevent accidental dislodgement.
Features
●Visual Merchandising:Best ergonomic visual to induce purchase
●Modular :Can be added or removed very easily
●Easy to Install:Commissioning of these is quick and easy
●Economic :Very economic system for retail
Pros
●Space Utilization
●Better Visual Merchandising
●Modular & Easy to install
Cons
●Not very heavy loads
●Suited only for retail fixtures
