Flow Rack System
Five Advantages Of Products
- Significantly improves picking rates.
- Excellent for both ‘full case’ and ‘broken case’ picking.
- Customizable storage lane widths.
- Optional features include charge-end impact zones, pick-end tilt trays, and pick-to-light systems.
- In-built rotation of goods: It is designed primarily to incorporate rotation with shelving.
Product Details
Product Details

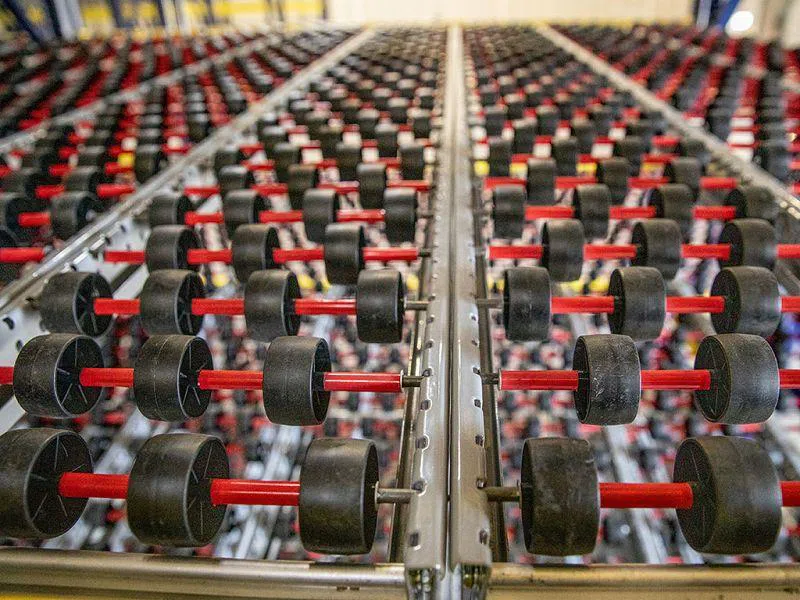

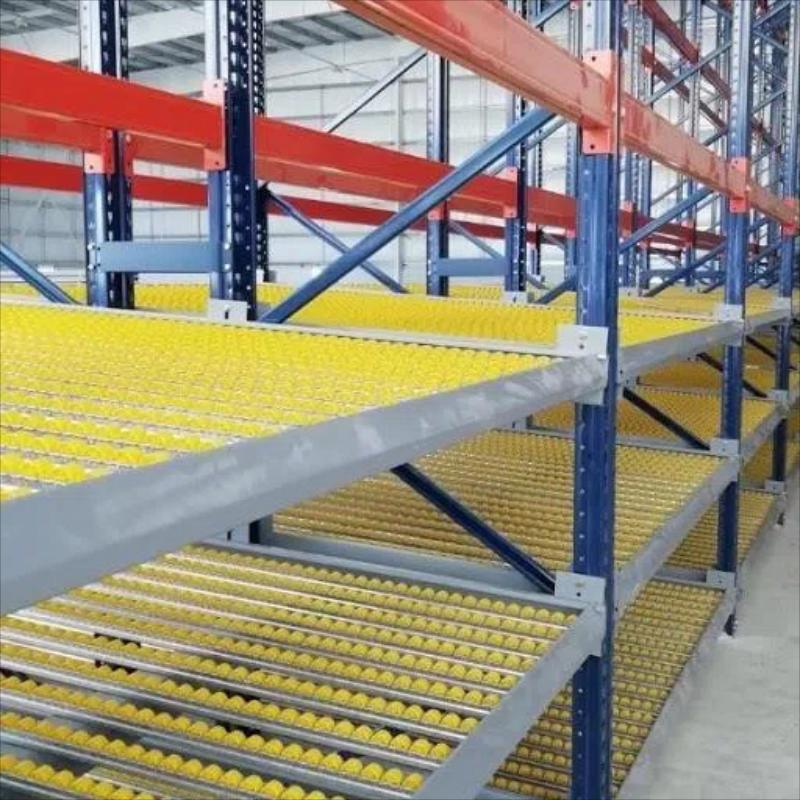

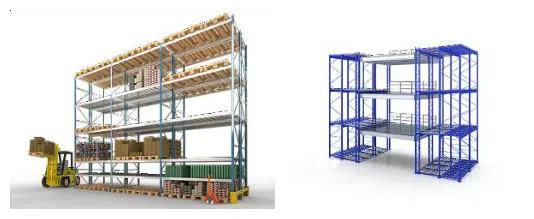

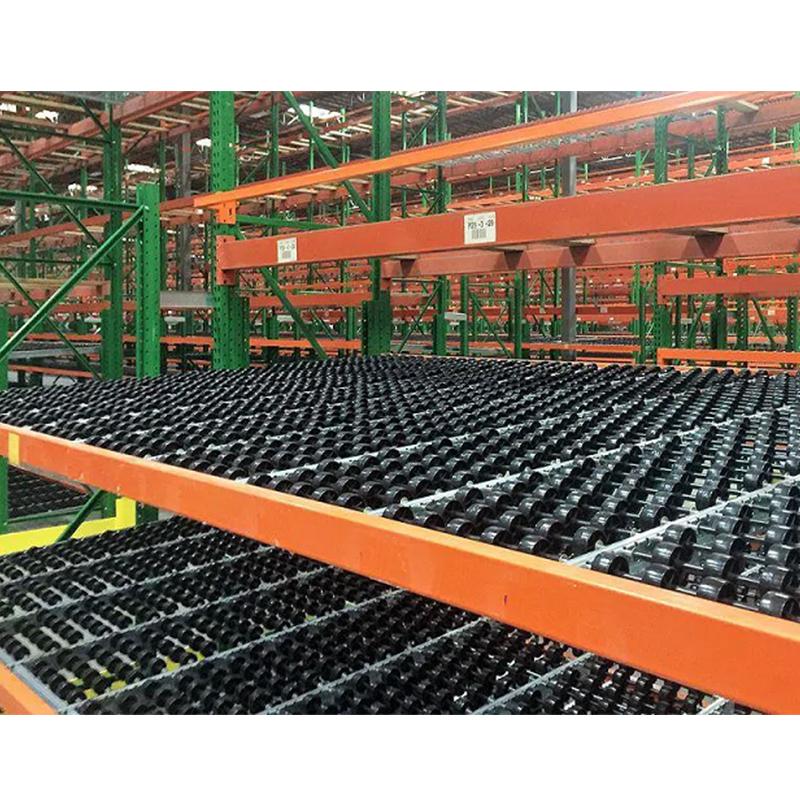

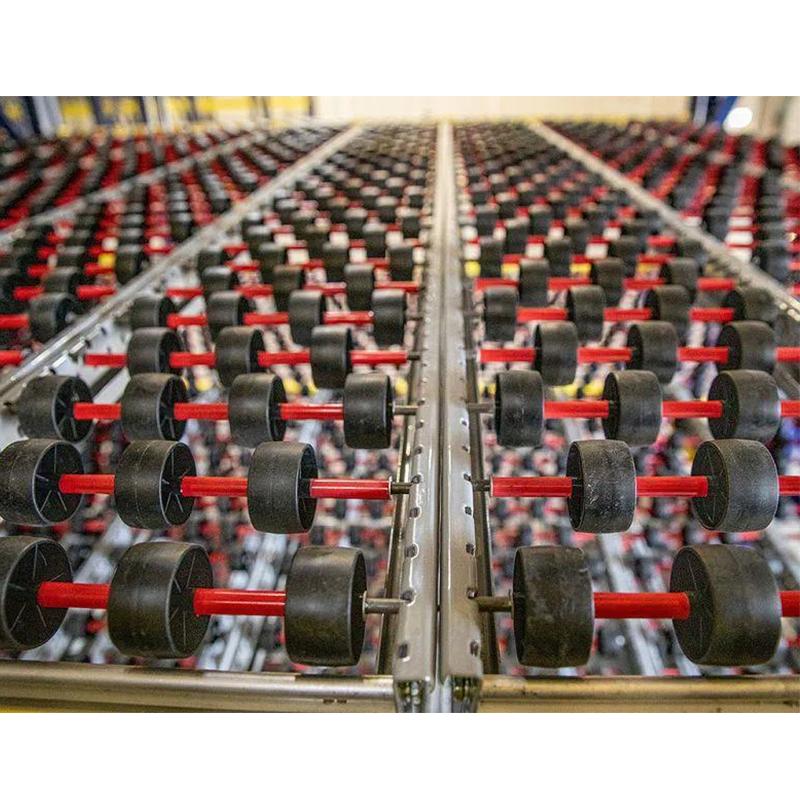

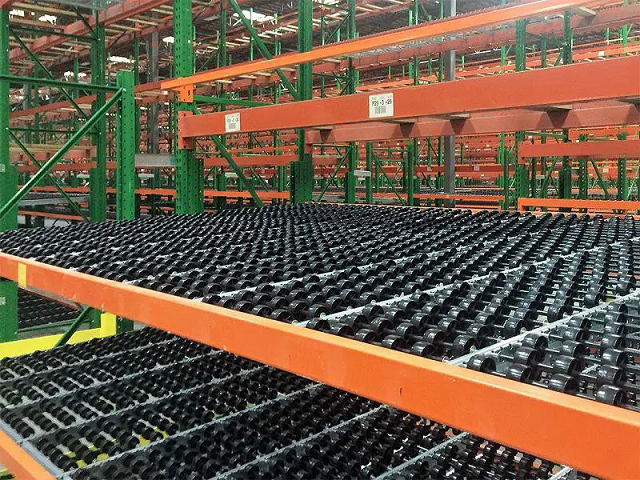

Flow rack system is a type of racking that uses gravity to feed rear-load design. Cartons are loaded on one side of the system and picked out on the other end. When an item is removed, the next carton will move forward and take its place. Working on a First In, First out (FIFO) basis, flow rack system is designed for high volume order picking and reduced operator activity.
Flow rack system is set up as a FIFO (first in, first out) storage system. Carton flow can either be designed to be implemented with pallet rack systems or to work as standalone units. The cartons or boxes are loaded onto one side of the pallet rack system, and are picked out of the other end after having slid down the wheel bed.
The gravity element allows for immediate fulfillment of space when a case is picked, eliminating the need for pickers to have to reach to the back of the shelving to select items. This combined with the option to create multiple levels of flow rack system, and product lanes within them, delivers a much more efficient, speedy and productive pick process, with increased pick faces created in smaller areas. Strips of the rollers can easily be adjusted to suit your needs. The ability to add dividers in allows you to have flexibility when segregate the lanes to suit the items that are being picked.
Advantages
●Significantly improves picking rates.
●Excellent for both ‘full case’ and ‘broken case’ picking.
●Customizable storage lane widths.
●Optional features include charge-end impact zones, pick-end tilt trays, and pick-to-light systems.
Features
●In-built rotation of goods: It is designed primarily to incorporate rotation with shelving.
●Mitigated Costs: Minimized need of high-end material handling equipment, eliminates unnecessary internal transport and saves costs.
●Dense storage capacity: Removal of aisle space between shelves makes the system extremely storage compact.
●Minimal human labor: Reduction in loading and unloading operation scales down the manpower necessary for operation.
●Versatile: Easy to integrate in any type of storage solution.
●Custom Design: Can be customized to suit any requirement – for example; Storage, intermediate warehouse or dispatch area.
