Product Details

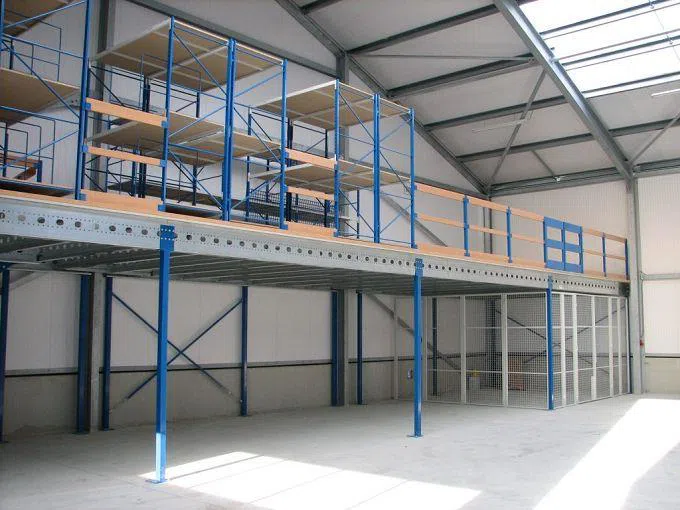

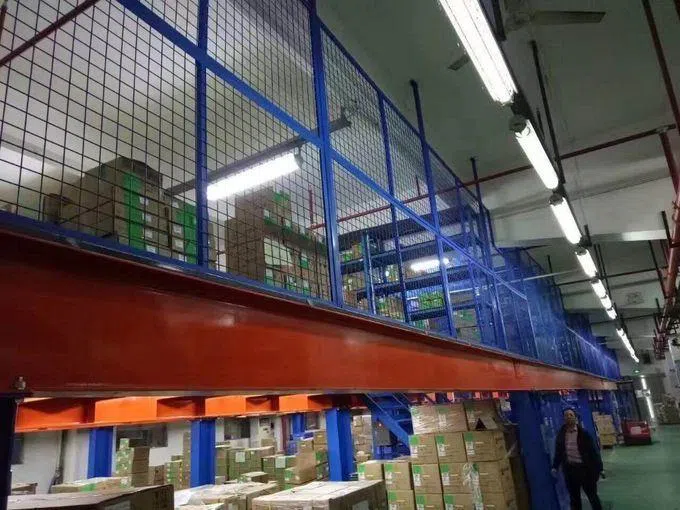

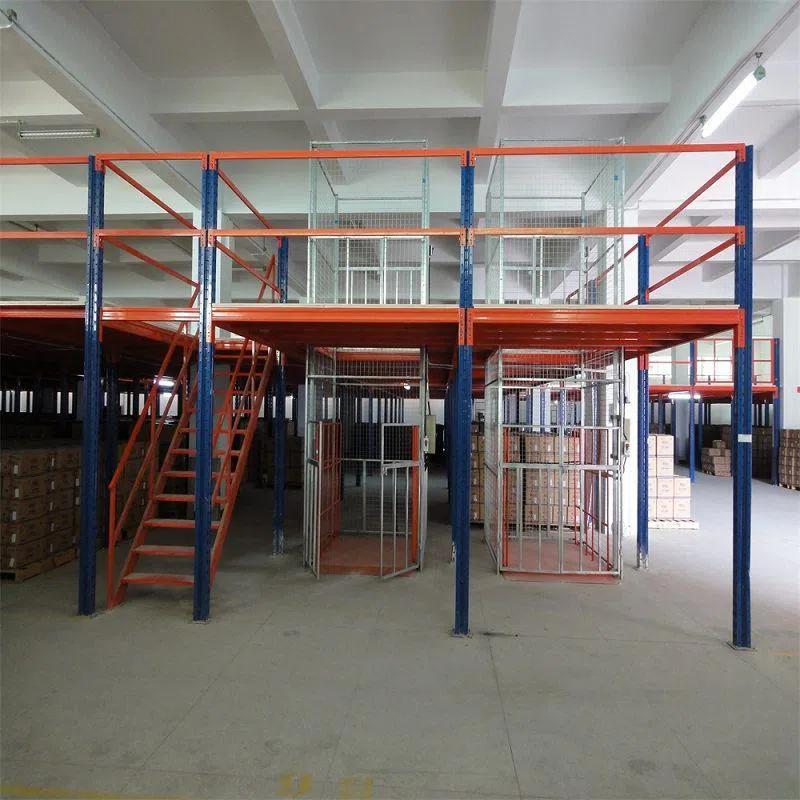

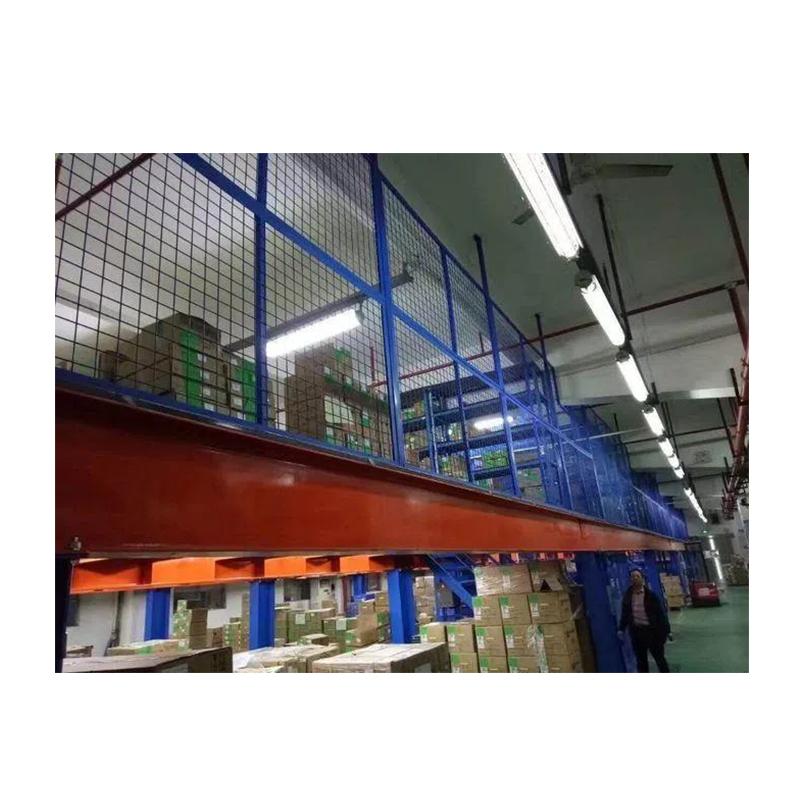

Warehouse storage mezzanine floor with multi layer shelf structure provided space utilization, suitable for the storage of artificial selection unit quantity and variety of goods. The bottom shelf of the warehouse storage mezzanine floor is not only is the storage of materials, and is the superstructure of the load-bearing beams support, can be designed into a multilayer. The floor is equipped with stairs, rails and elevator. Warehouse storage mezzanine floor is suitable for warehouse, light goods, manual access, large storage capacity of the situation, but also suitable for used for the technical transformation of existing old warehouse. It can improve the warehouse space inter body ratio. The load-veering beams span the bottom, if narrow, then construction costs can be greatly reduced.

Specification

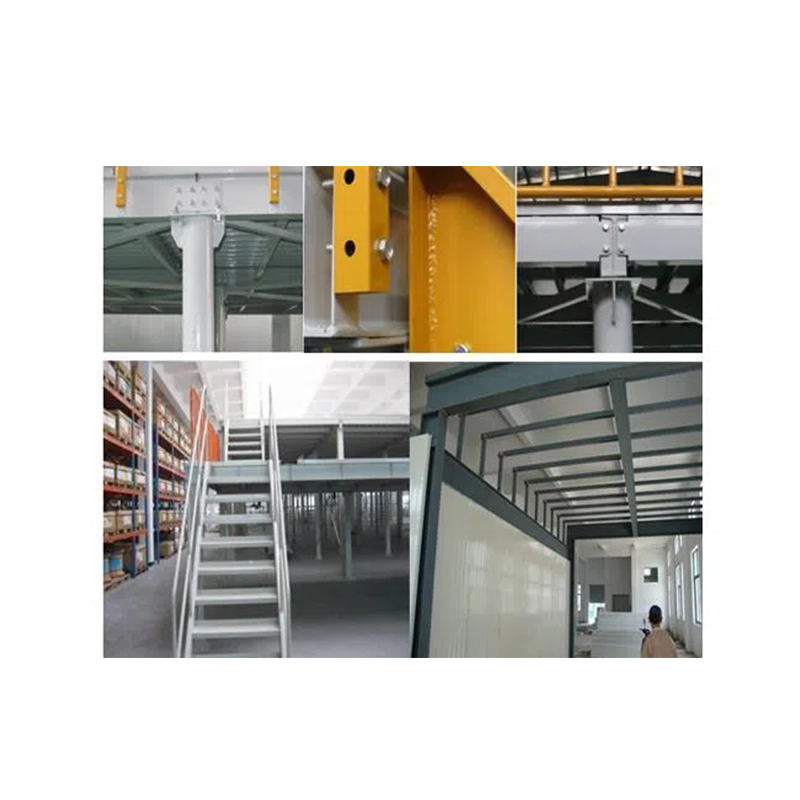

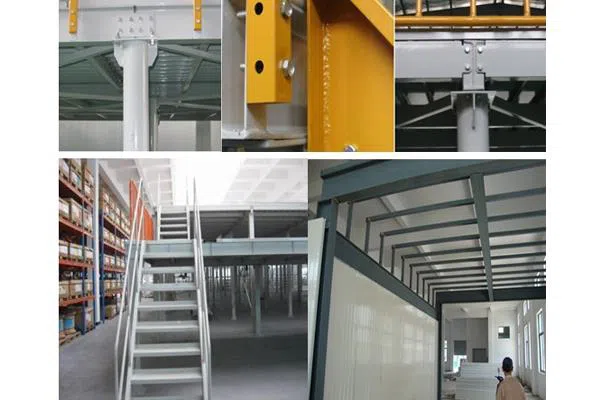

●All composite structure, and uprights are made from square or round tube, girders are from H type steel.

●Cold rolling steel is used to make walkways.

●Special locks are adopted to fix walkway and girders tightly.

●The walkway has such advantages as good loading capacity, high precision, quite smooth walkway surface.

●It’s easy to be fixed compared with regular walkway.

●The mezzanine floor is equipped with lighting system, easy for accessing and management of goods.

●Goods are to be conveyed to the second or third floor by forklifts, lifts or staircases and then moved to the pointed position by cart.

Advantages

●Mezzanine Floors enable the full working height of a building to be utilized to its maximum by doubling the surface area. It adds additional space to existing structures.

●Can be installed or dismantled freely from one warehouse to another.

●Loading capacity of floor can be designed to be no more than 1000kg/square meter.

●Combining perfectly storage with management of goods by setting offices on the mezzanine racking.

●Mezzanine Floors can be used as storage areas, fabrication areas, packing areas and offices among an array of other uses.

●Installing a Mezzanine floor is the most cost effective way of optimizing your existing space, because all your fixed costs are already covered.

●Mezzanine floors are easy to install and can be designed to handle a variety of loads.

Case
