Steel Platform And Stairs
Five Advantages Of Products
- Welfor steel platforms to suit individual requirements
- Welfor steel platforms to suit individual requirements
- To comply with planning consent and building regulations
- To all relevant building regulations, International standards & loadings
- Materials - mild steel, stainless steel
Product Details
Product Details

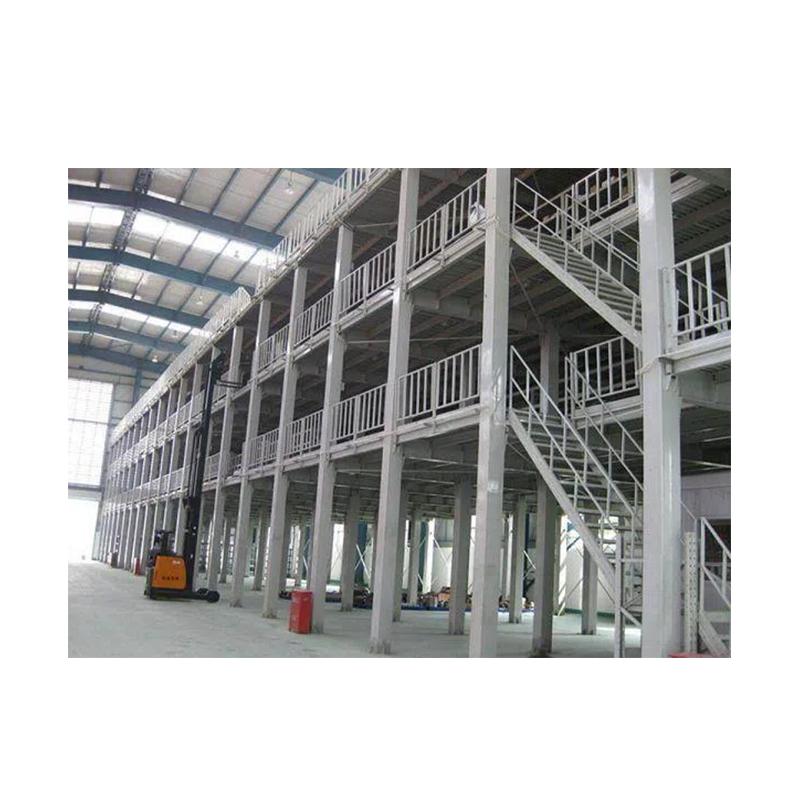

Steel platform and stairs are extensively used in the condition of high warehouse, small goods, large quantities and manual access. It can make full use of the space and save warehouse area. It could be designed as single or multiple steel platform and stairs, generally 2-3 layers, according to the actual field and specific requirements. It is specifically used for sorting storage of automotive fittings, electronic device fittings and electronic devices. It could carry less than 1500kg /㎡.The general ways of transportation from 2nd floor to 3rd floor are: manual, elevating table, hoisting machine, conveyor belt, and forklift trucked.
Steel storage platforms are an ideal solution to increase the capacity of storage areas simply and without renovation. It is possible for them to have one or multiple levels. Using them can help achieve maximum and optimal use of the overall ground-floor area and the storage platform floor.
Steel platform and stairs are self-supporting, prefabricated structures made from partially welded components. They are made from standard rolled and cold-formed steel section, which is reinforced using stabilizing rods. It is not standard practice to anchor the steel platform construction to a building’s columns or walls, because it is possible to compromise the building’s structural integrity. In order to use the platforms, it is necessary for the space to have a height of at least 4.5 meters. Our design has a minimum ceiling height of 2.1 meters. It is possible to equip the platforms with various accessories, such as elevators, chutes, mesh, labels, lighting, etc.

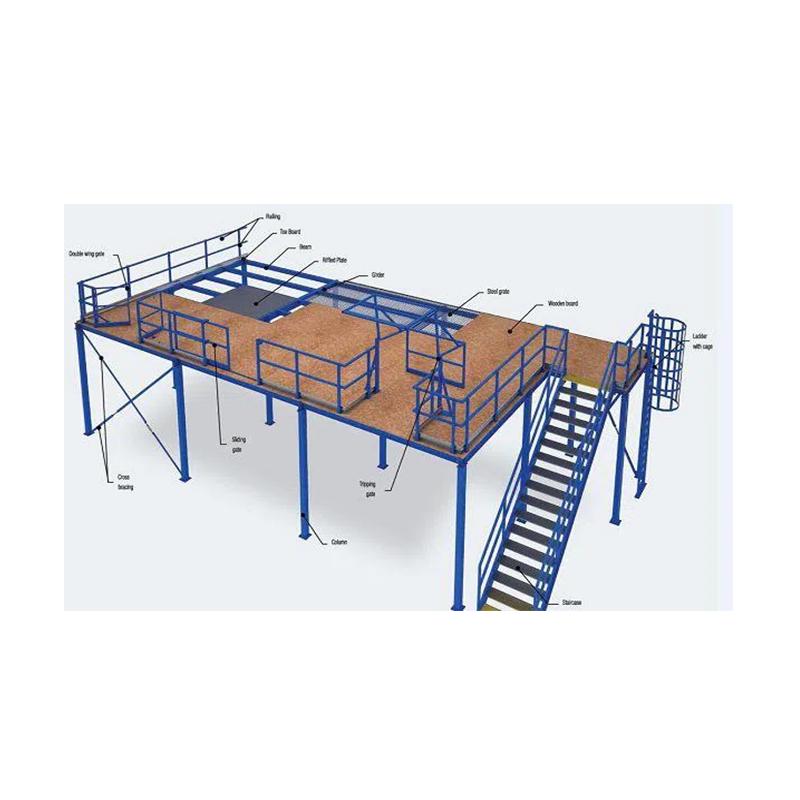

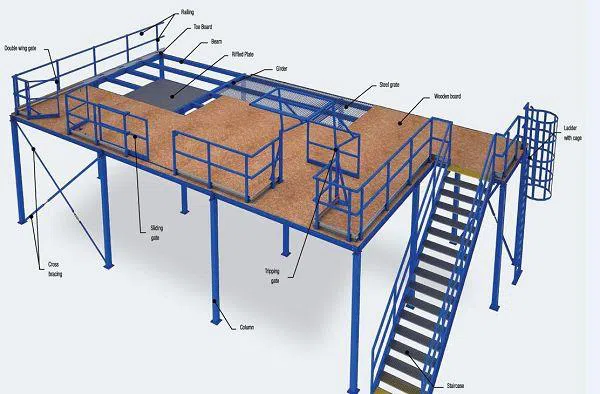

Structure
Accessories
●Corner protectors
●Frame protectors
●Mesh or sheet metal wall panels
●Panels from metal grating (decking)
●Particle board panels (decking)
●Sheet metal panels (decking)
●Sheet metal for load distribution
●Load-bearing columns
●Main and secondary beams
●Cross bracing
●Platform decking
●Staircases, railings, and other accessories as required
Advantages
●Welfor steel platforms to suit individual requirements
●Aesthetically pleasing
●To comply with planning consent and building regulations
●To all relevant building regulations, International standards & loadings
●Materials - mild steel, stainless steel
●Finishes – mild steel self color, galvanized or painted, Stainless Steel
●Site surveys/technical visits can be carried out if required

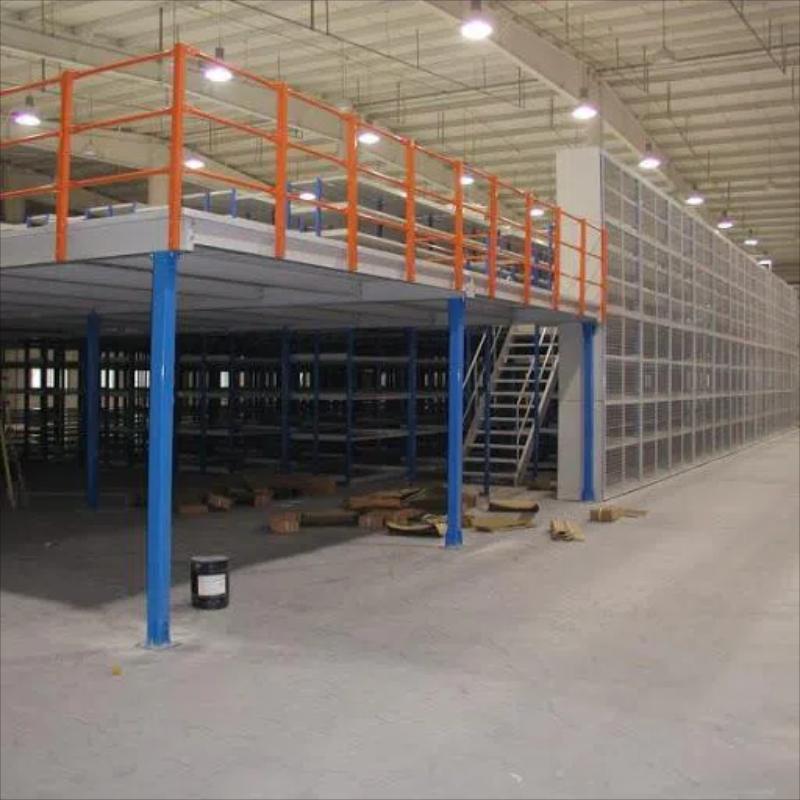

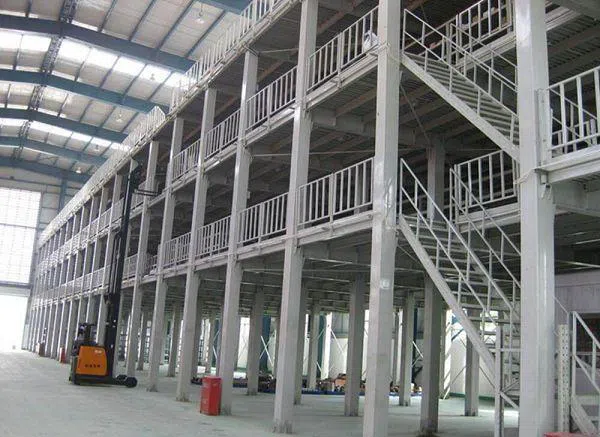

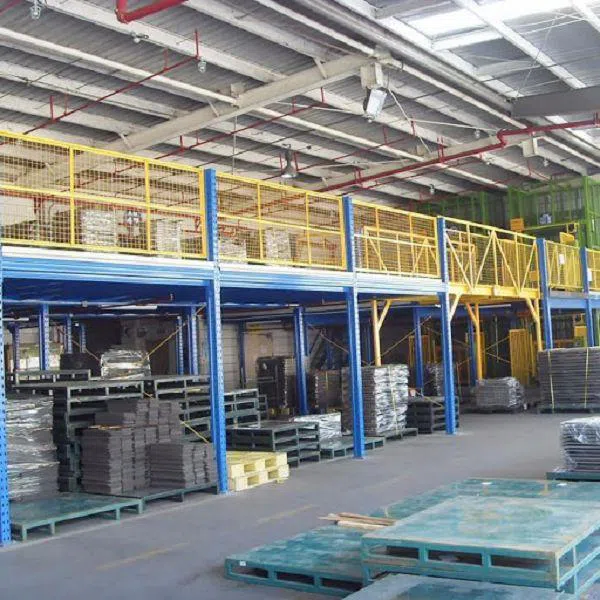

Case
