Q235B Steel Pallet Rack
Five Advantages Of Products
- Direct access to each pallet
- Simple stock management
- Adaptable to any product volume, weight or size
- Save costs by using Wide Span beams with selective end connectors
- Selective rack can also be used in the construction of rack supported buildings as well as for more basic storage needs.
Product Details
Product Details
Q235B steel pallet rack is a material handling storage aid system that provides efficient use of storage space for palletized loads and is the most common pallet racking system in use today. Q235B steel pallet rack allows for the storage of materials in horizontal rows with multiple levels. Welfor carries a wide range of pallet racking components and can design a selective racking system to tailor to your specific space and budgetary requirements. Q235B steel pallet rack is compatible with all types and sizes of pallets and may be used with any type of handling system. Welfor recommends Pallet Shelves System for clients looking to implement an inexpensive storage system with a high throughput rate and FIFO inventory management for many SKUs and low pallet quantities.
Advantages
●Direct access to each pallet
●Simple stock management
●Adaptable to any product volume, weight or size
●Save costs by using Wide Span beams with selective end connectors
Selective Pallet Rack can be configured for a variety of uses. One option is double-depth racks which increase storage capacity by enabling four pallets to be stacked back-to-back (requires a deep-reach truck).
Selective rack can also be used in the construction of rack supported buildings as well as for more basic storage needs.

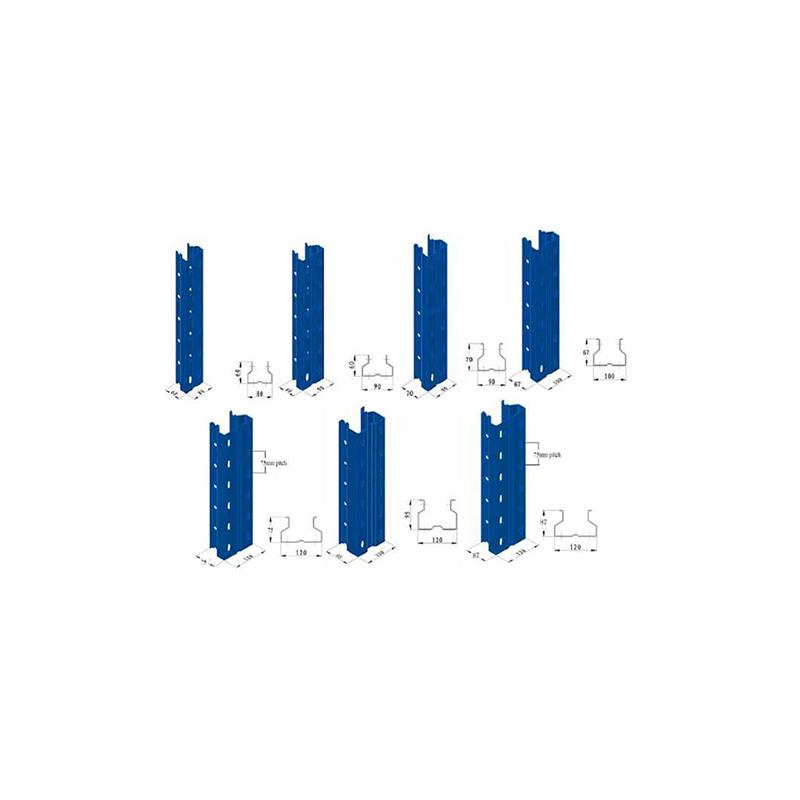

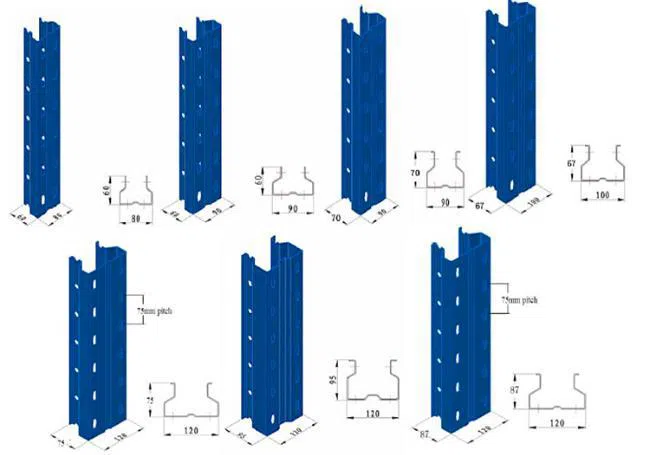

Upright
Standard section sizes: 80*60*1.8-2.0, 90*60/70*1.8-2.0-2.5, 100*67*2.0-2.5, 120*75/87/95*2.0-2.5mm.

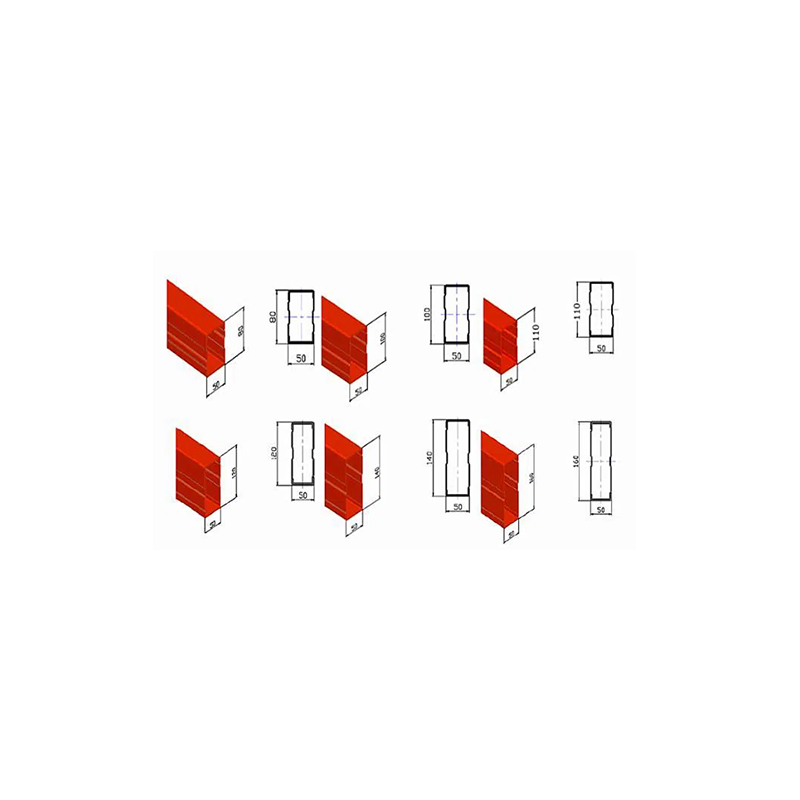

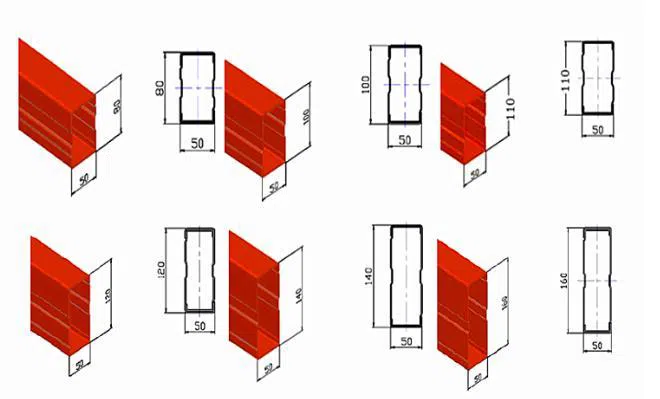

Box beam
Standard section sizes: 80*50*1.5, 100*50*1.5-2.0, 110*50*1.5-2.0, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0.
Components
Post Baseplate, Bracing, Plastic Block for assembly of horizontal bracing, Anchors, Bolts & Nuts, and Safety Pin.
Accessories
Row Spacer connecting Upright Frames for stronger structure, U-shape Post Protector, L-shape Post Protector, Frame Barrier, Pallet Supporting Bar, Steel Pallets, Plastic Pallet, Special custom-made Pallets, Cage, Mesh Container, Mesh Deck, etc.

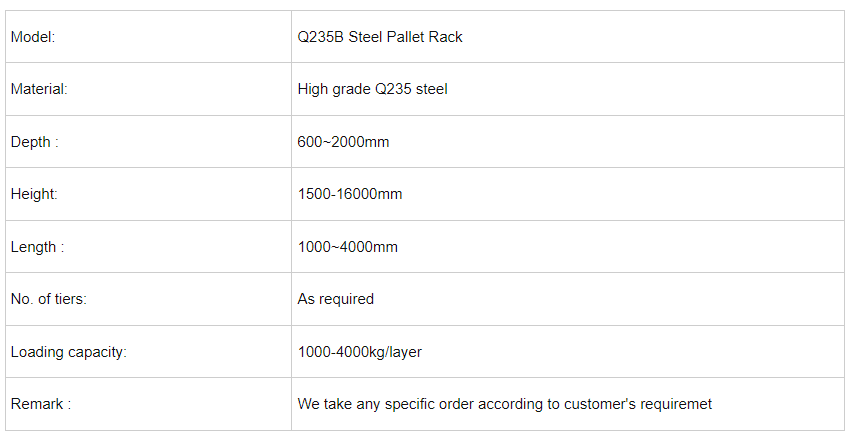

Dimensions

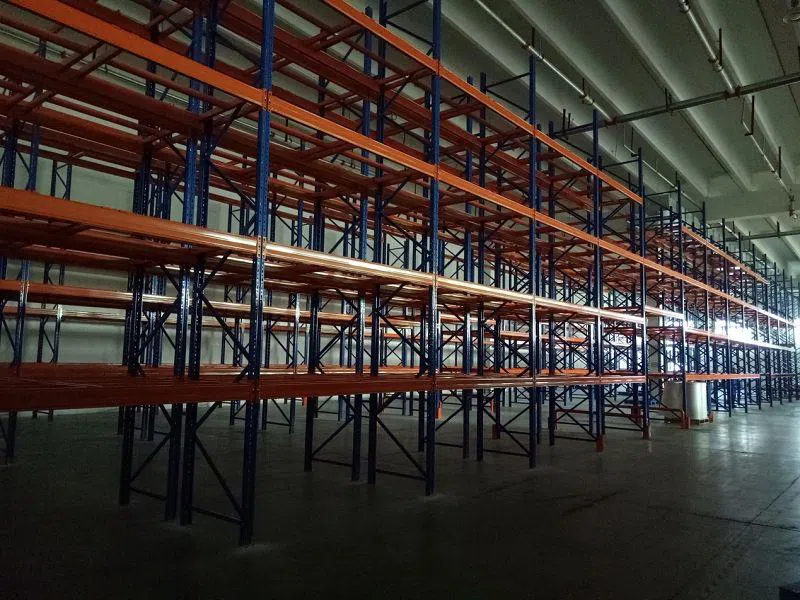

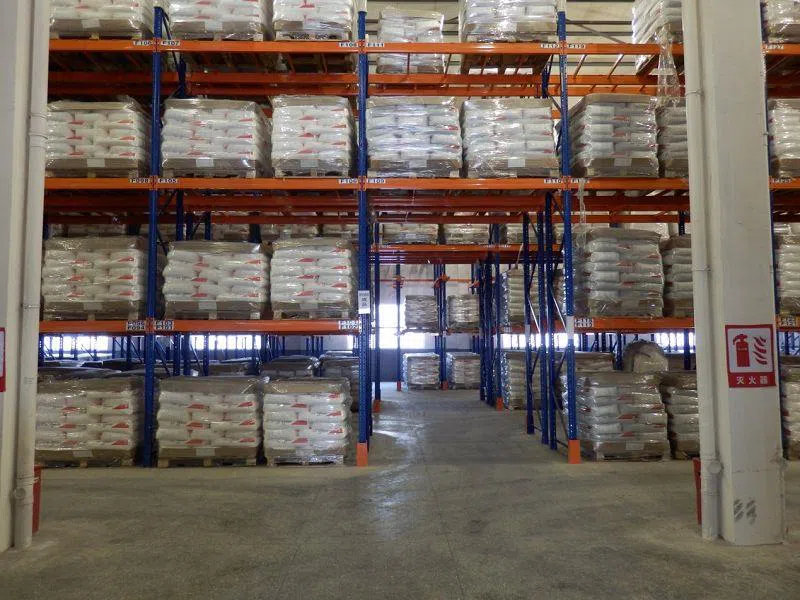

Case
