Product Details

American standard pallet rack is the basic storage equipment commonly used in warehouse operations. They are based on the six basic functions of logistics: packaging, transportation, loading and unloading, sorting, and information management. With the continuous development of the storage rack industry, more and more industries and enterprises have used the storage racking, and more and more enterprises have entered the storage industry. American standard pallet rack are one of the main facilities of storage.

Welfor American standard pallet rack is the most economical and efficient way to store pallets or bulk boxes therefore maximizing valuable storage space in your warehouse.  As the owner or lessee of a warehouse you realize that you are paying for every square foot of space and to not maximize that space is a waste of money.

Welfor American standard pallet rack can be used for a variety of storage applications including selective pallet storage racks, narrow aisle selective, bulk  storage, carpet storage, drum storage, cable reel storage, marine boat storage, retail racks, rack supported mezzanines and pick modules.

Welfor American standard pallet rack is designed & manufactured to RMI (Rack Manufacturers Institute Specifications).

Upright Frame

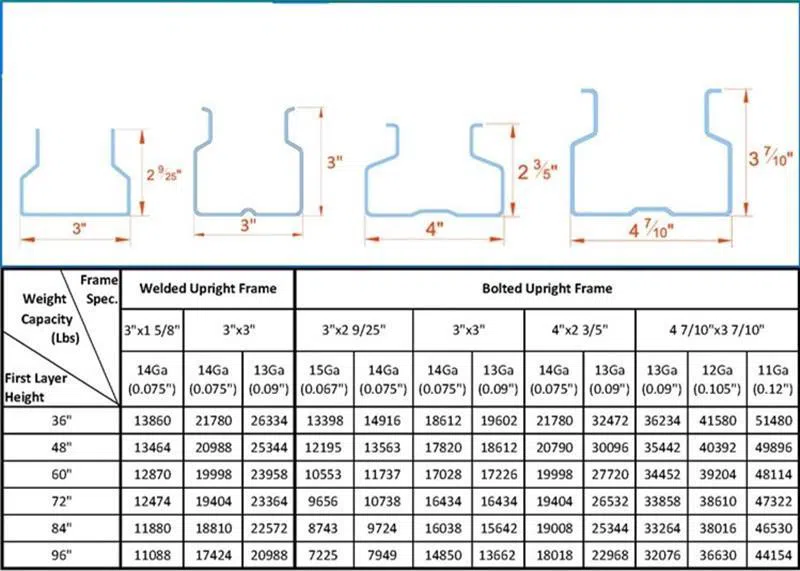

Welfor American standard pallet rack is available more than five sizes to cover most loading requirements. Parameters of 2" upright frame.

Beam

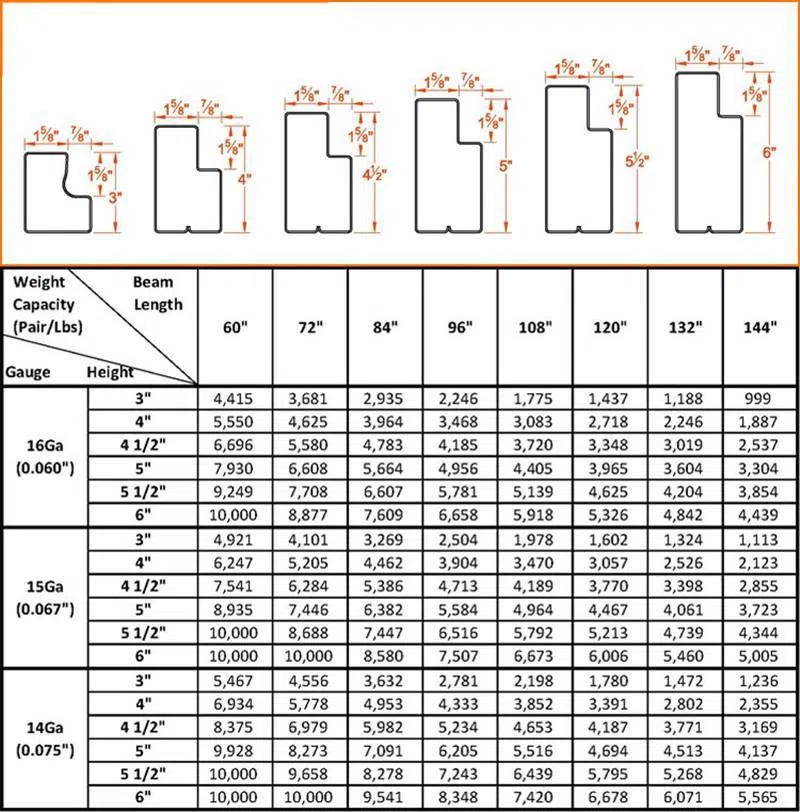

Heavy-duty Teardrop Step Beams are made of 14 gauge or 16 gauge tubular steel and include a factory installed auto lock Safety Clip which will make a clicking sound once the beam is secure and prevent it from dislodging. Full fillet welds add to the beam’s strength and durability. Safety orange beams allow lift truck drivers easy recognition of the beam level at high elevations. Safety orange color aids in safe loading and unloading of racks.

Beam connector

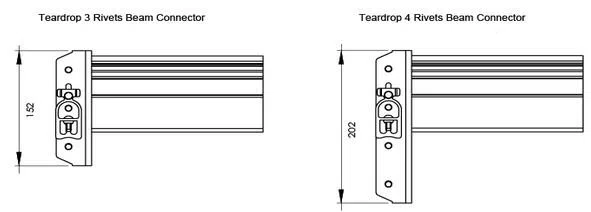

Teardrop Pallet Racking 3 and 4 Rivets Beam connector are designed to increase resistance to sideways away moments and effectively take vertical loads and moments on specially designed high performance hooks.

Safety pins

Each beam is supplied with steel Safety Lock, which guarantees the beam, is correctly positioned and helps prevent the beam being accidentally dislodged during its work. Safety Locks are fixed to beam connectors when being packaged.

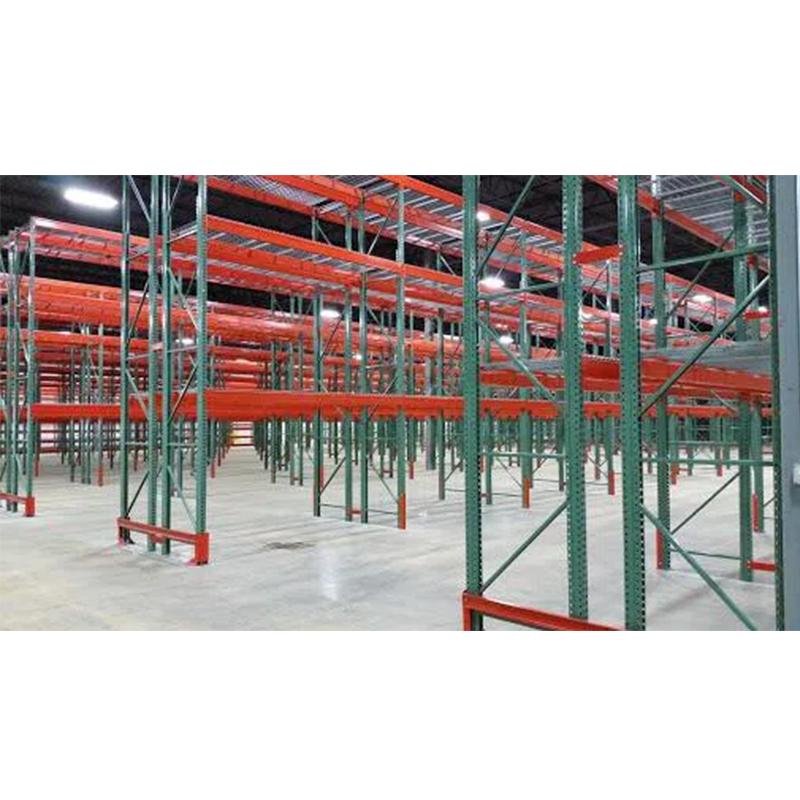

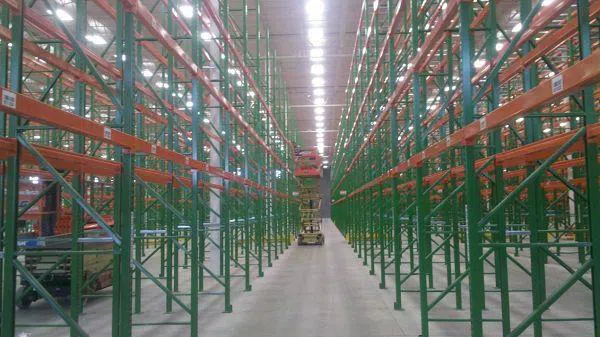

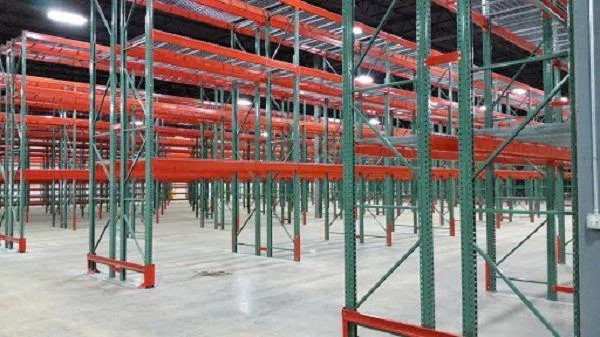

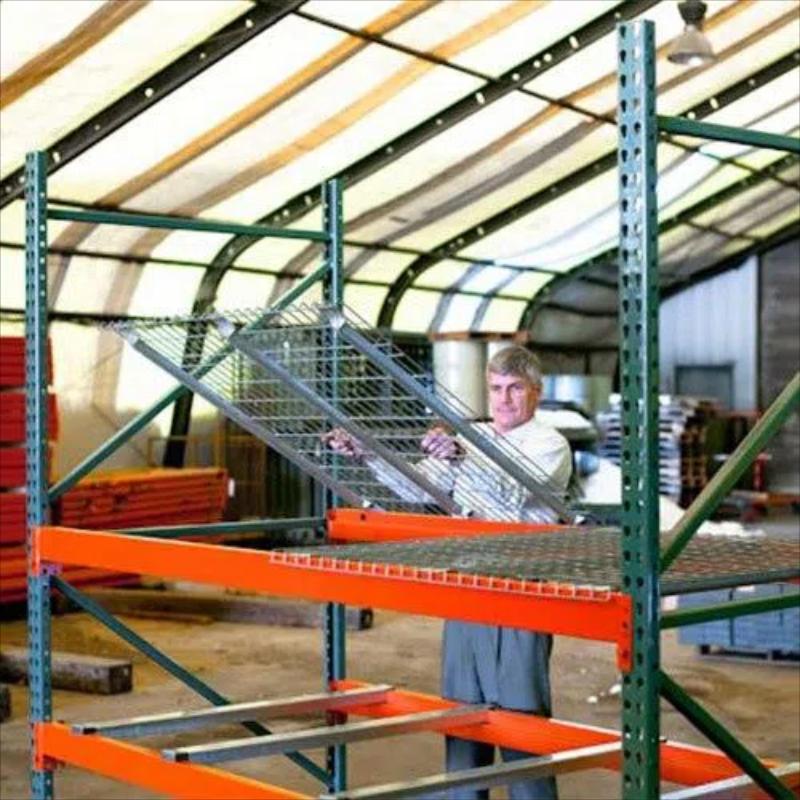

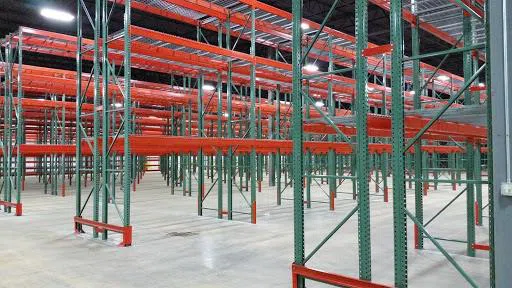

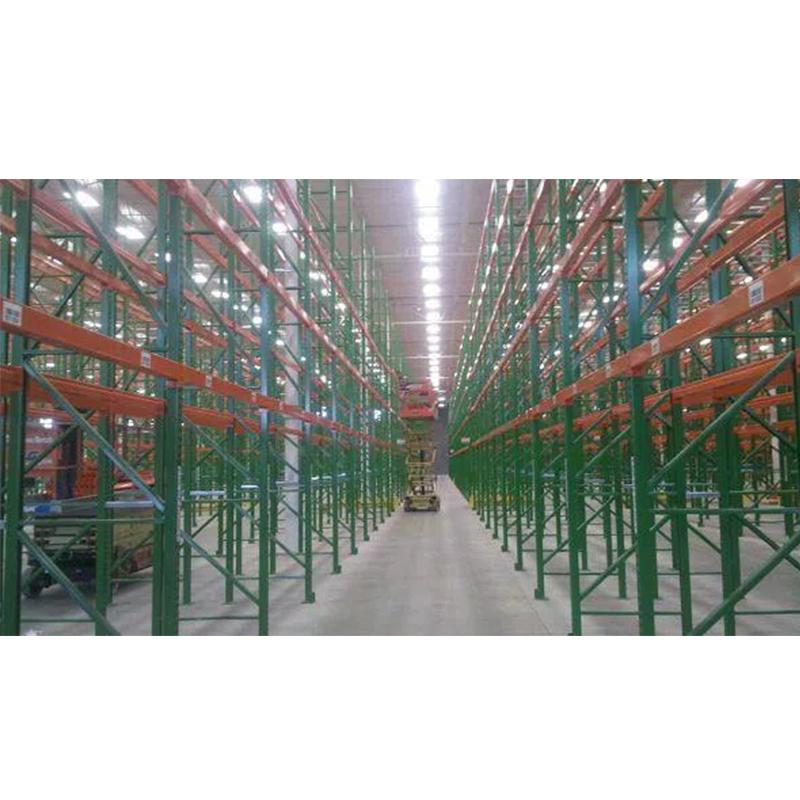

Case
